Description du produit

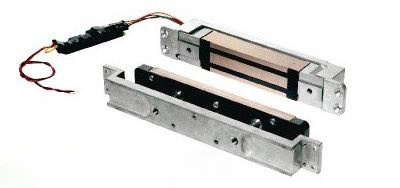

GF3000MBSDS Shearlock magneet van Schlage
Schlage provides the most complete selection of electromagnetic locks in the industry. The GF3000 Series Shear Lock features a patented design offering advances over any Shear Lock on the market. Unique mounting features provide a floating action of both the lock assembly and the armature. This design allows the magnet assembly to move towards the armature during the locking process.In this manner, the GF3000 is able to overcome gaps of up to 6mm without current inrush. Once engaged, the Shear Lock provides 1360kg holding force without high operating temperatures normally associated with other Shear Locks. A microprocessorbased control module provides advanced electronic features. This circuitry automatically senses and adjusts input voltage, allowing for operation from 12 to 24 volt DC power sources.

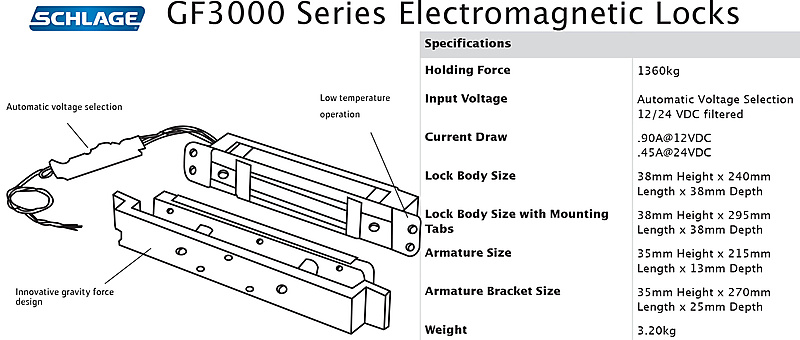

(fr)Spécifications du produit
| 1360kg of holding force | |
| Automatic voltage selection 12/24 vdc (filtered) |
Téléchargements
