Productbeschrijving

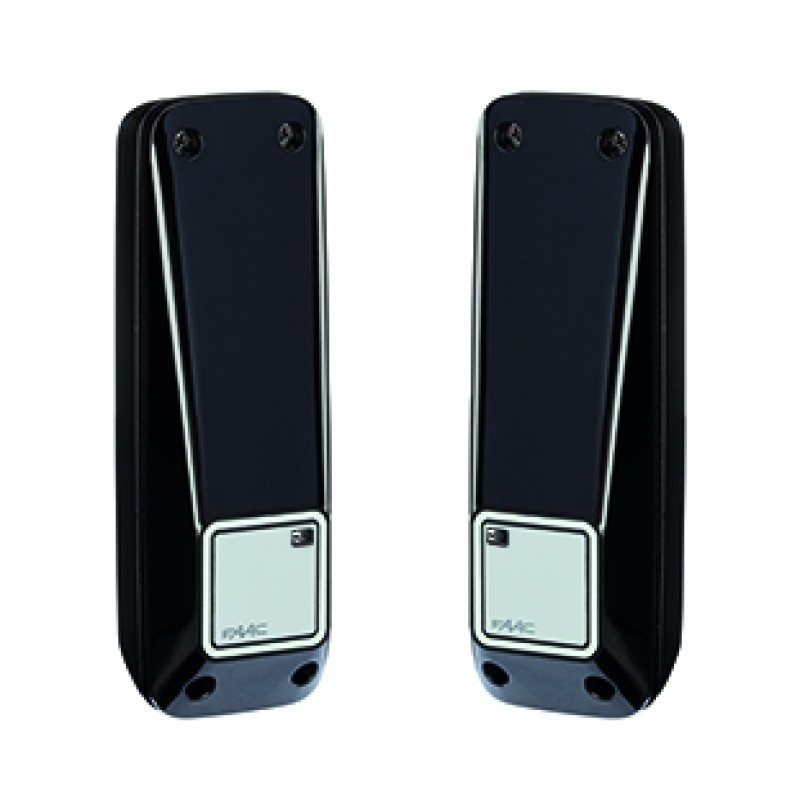

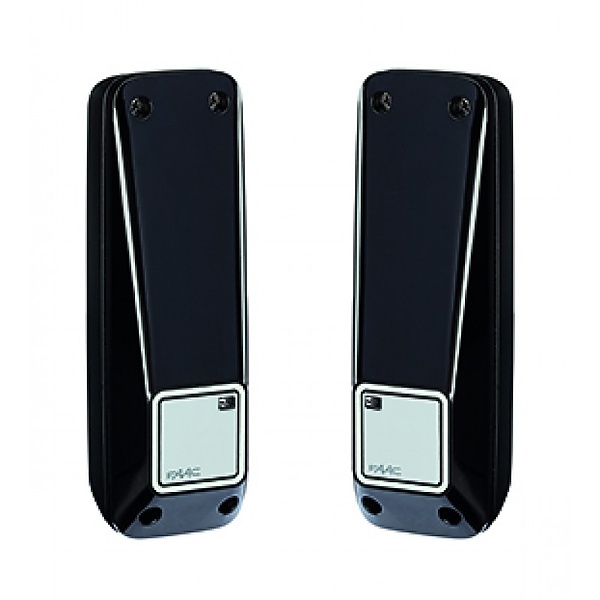

XP20B D Fotocellen
faactoebehoren
Productspecificaties
| 20 m | |
| Ip54 | |
| Muurinstallatie | |
| Voeding van bus 2easy to 2 non-polarized wires 24vdc | |
| Afmetingen (lxhxd) mm 41.5 x 130 x 42.5 | |
| Horizontale mechanische afstelling -90° +90° | |
| Verticale optische uitleining 7° (20m) 13.5° (5m) | |
| Obstakeldetectie tijd 20ms | |
| Stroomopname rx (10ma) = tx (10ma) | |
| Type contact n.c. | |
| Maximale besasting van contacten 60va/24w | |
| Omgevingstemperatuur -20°c ÷ +55°c |

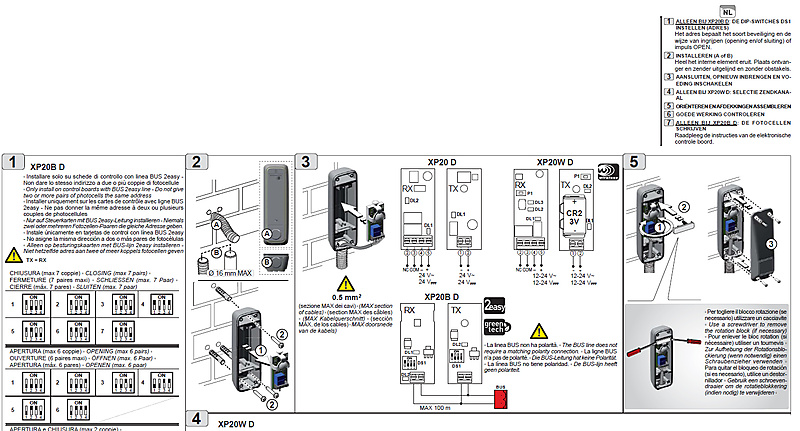

Downloads
[RESULT]
XP 20B D Regelbare opbouw fotocel Faac
